Description

5inch Round IPS HDMI Touch Display for Raspberry Pi (1080×1080)

This 5″ round IPS touchscreen display is a great way to add a front-end interface to?your Raspberry Pi project, and as it uses a standard full-size HDMI connection, you can use it with other devices too!

The IPS?1080×1080 display has wide 160?? viewing angles along with?10-point capacitive touch?that allows you to easily zoom, rotate, swipe, drag, double tap or use other gestures with up to ten fingers on the screen at the same time (OS-dependent).

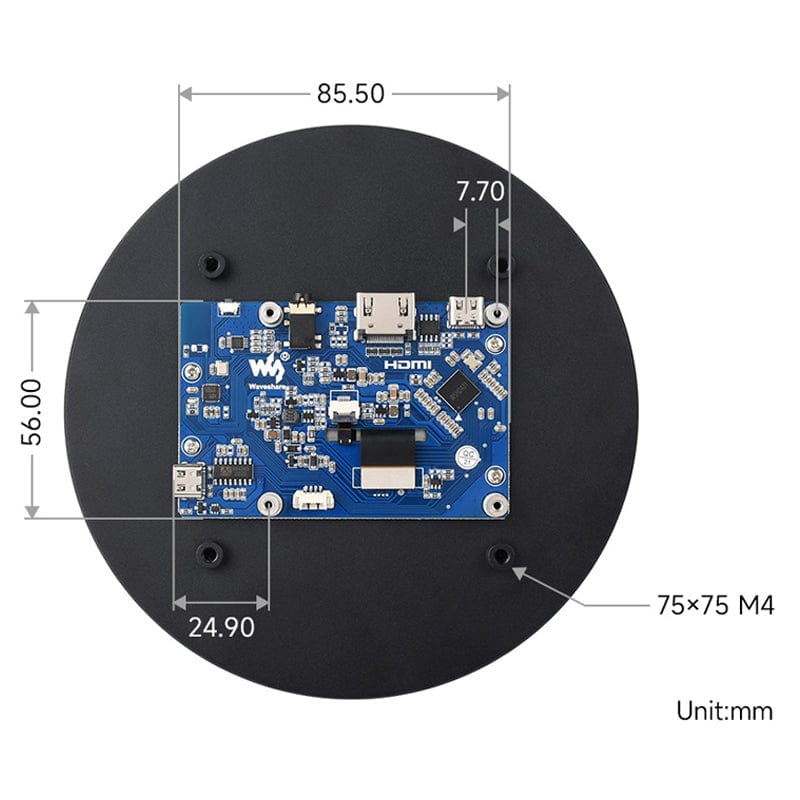

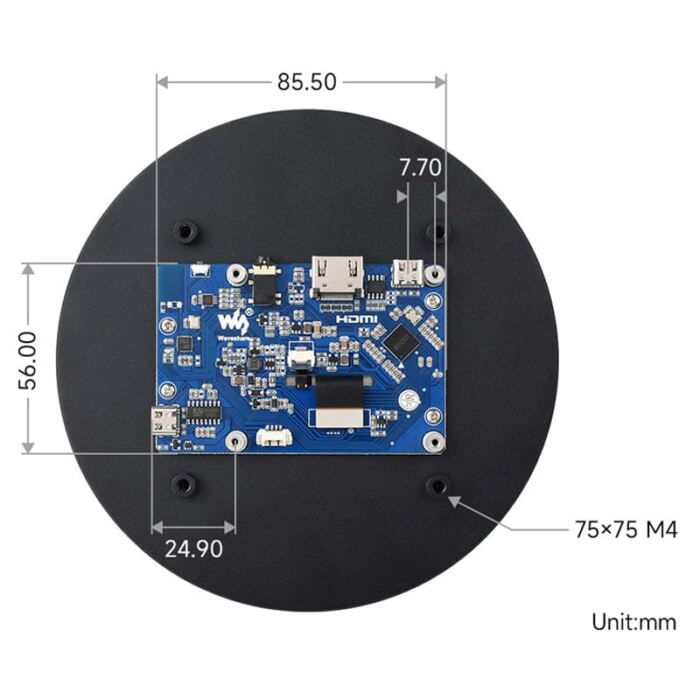

On the rear, you’ll find a full-size HDMI port, a 3.5mm audio jack + 4-pin speaker header,?power and touch ports (USB-C) and a small backlight ON/OFF button.

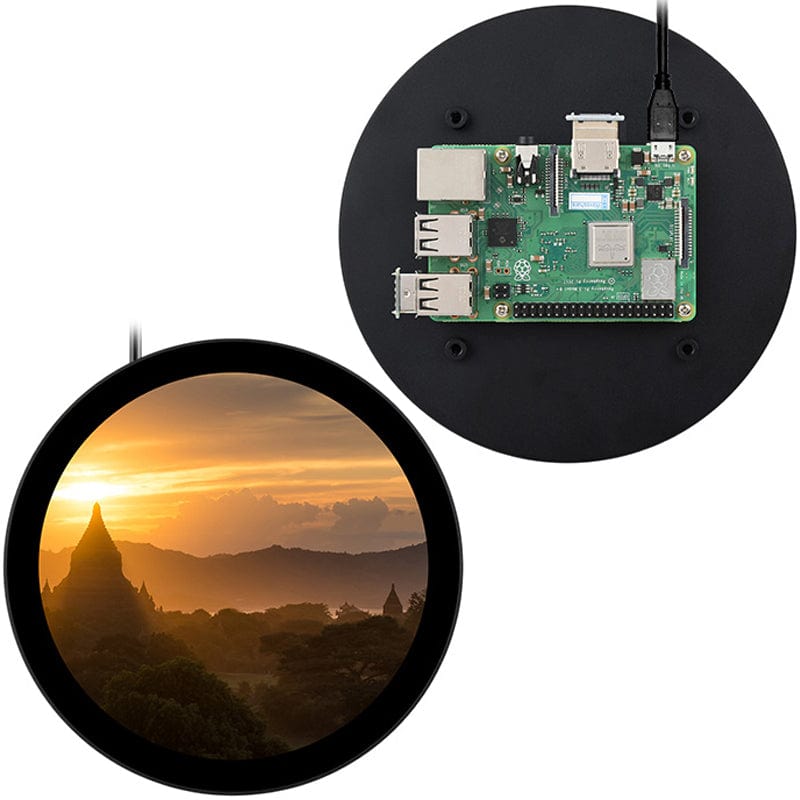

The display comes with compact PCB adapters to allow you to hook up a Raspberry Pi 4 to both the HDMI port and USB (for touch data) without the need for any messy cables (apart from your power supply of course).

Raspberry Pi not included.

Features

  • 5″ IPS round?display for Raspberry Pi
  • 1080 x 1080 hardware resolution
  • 10-point capacitive touch
  • Toughened glass panel, hardness up to 6H
  • Optical bonding technology
  • USB-C touch/power
  • Backlight control button
  • 3.5mm audio port + 4-pin speaker header
  • Supports Raspberry Pi OS / Ubuntu / Kali and Retropie (when used with Raspberry Pi)
  • Supports Windows 11 / 10 / 8.1 / 8 / 7 (when used as a computer monitor)
  • Supports HDMI audio output with 3.5mm jack and 4-pin speaker header

Specifications

Item Description Unit
Model 5″ 1080 x 1080 LCD /
Dimensions 5 Inch
Viewing Angle 160 Deg
Resolution 1080 x 1080 Pixels

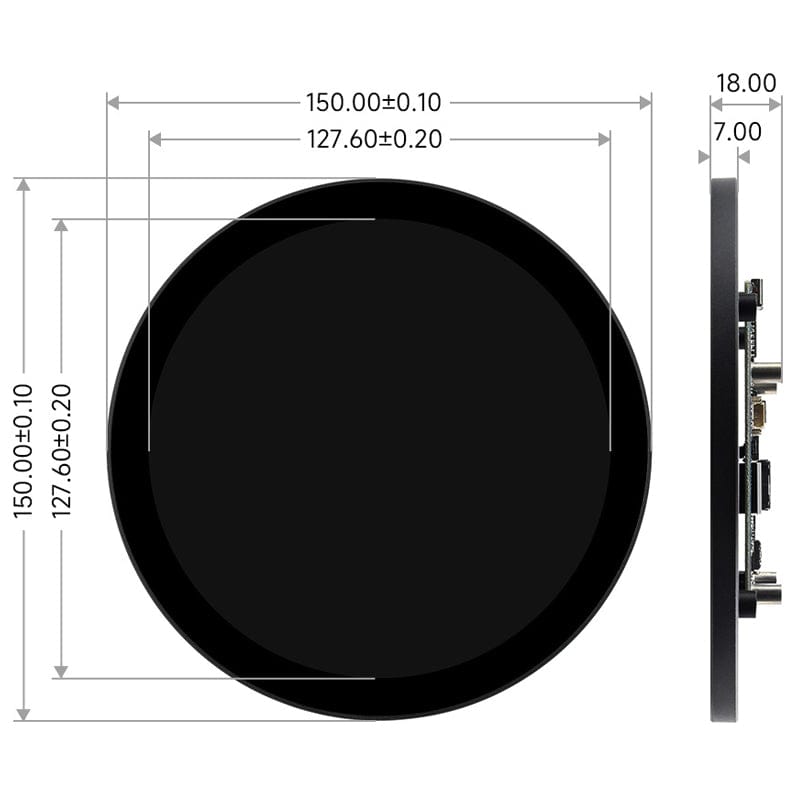

Overall Size 150.00(H) ?? 150.00(V) ?? 7.00(D) mm
Display Area 127.60(H) ?? 127.60(V) mm
Pixel Pitch 0.1176(H) x 0.1176(V) mm
Colour Gamut 0.7 NTSC
Maximum Brightness 300 cd/m2
Contrast 54.16736111 /
Backlight Adjustment Button dimming /
Refresh Rate 60 Hz
Display Interface Standard HDMI port /
Power Port 5V Type-C power supply /
Power Consumption 2 Watt
Weight 381 g

Resources

  • Product Wiki

Pinout

Package Contents

  1. 1x 5″ 1080×1080 LCD
  2. 1x HDMI flat cable ~1m
  3. 1x USB-A to USB-C cable ~1m
  4. 1x USB to Type-C adapter (B)
  5. 1x USB to Type-C adapter (C)
  6. 1x HDMI to Micro HDMI adapter
  7. 1x HDMI adapter
  8. 1x Screws pack

Raspberry Pi not included
